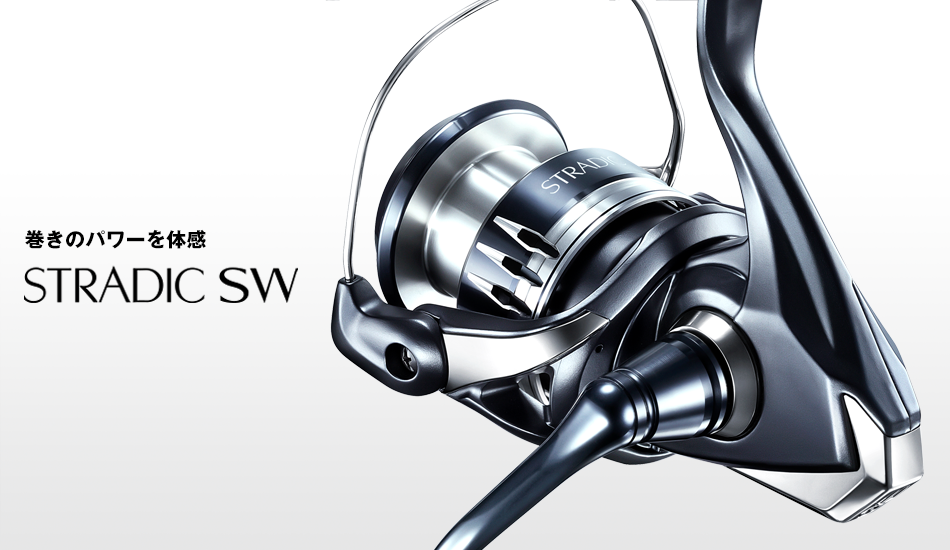

Experience the power of winding
|
| STRADIC SW |
Extensive specs to control exciting SW games
In addition to light winding, it is equipped with an infinity
drive that also realizes strength, allowing you to fight
while taking the initiative. In addition, durability
is improved by X-protection that shuts out the
ingress of water into the line roller part.
The power and toughness required for offshore
have evolved to a higher level.
* 5000PG, 5000XG, 6000PG, 6000HG, 6000XG,
8000PG, 8000HG, 10000HG will be released in November. |
| Technical characteristics |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
* Infinity drive: Excluding 4000HG and 4000XG
* Silent drive: 4000HG, 4000XG only
* X shield: Excluding 4000HG and 4000XG
* G free body: 4000HG, 4000XG only
|
|
|
|
| Lineup |
 |
 |
 |
 |

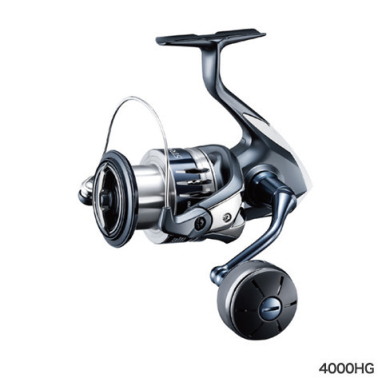

4000HG
Light shore jigging &
plugging standard model
High durability SW
specification of
general-purpose
spinning # 4000.
Active in a wide range
of scenes
such as light jigging as
well as casting games.
[Reference target fish
/ fishing species]
Light shore jigging &
plugging, light jigging,
offshore casting (shiira,
bonito, medium-sized
blue fish),
blackfin seabass,
surf, etc
. |
4000XG
Light shore jigging &
plugging high speed model
High durability SW
specification of
general-purpose
spinning # 4000.
Especially active
in casting games due
to the speed of collection
due to the fast winding
speed unique to XG
and the elimination
of thread dandruff.
[Reference target fish
/ fishing species]
Light shore jigging &
plugging, light jigging,
offshore casting (shiira,
bonito, medium-sized
blue fish),
blackfin seabass,
surf, etc. |
5000PG
Inshore offshore &
shore game Winding
power-oriented model
Active in a wide range
of scenes such as
light jigging as well
as casting games.
[Reference target fish
/ fishing species]
Shore jigging &
plugging, jigging,
offshore casting
(blue fish, dolphin fish, bonito),
blackfin seabass, etc.
|
5000XG
Inshore Offshore &
Shore Game High Speed
Model
Especially active in
casting games due
to the speed of collection
unique to XG and
the elimination of
thread dandruff.
[Reference target fish
/ fishing species]
Shore jigging & plugging,
offshore casting
(blue fish, dolphin fish, bonito),
jigging, blackfin seabass, etc.
|
|
|
|
|
 |
 |
 |
 |
6000PG
Slow invitation and hoisting
power-oriented model
# 5000 Large diameter
spool model. With
the excellent power
of PG, it is ideal for slow
invitations in gori-rolling
fights, jigging and
casting games.
[Reference target fish
/ fishing species]
Jigging, shore jigging &
plugging, etc. |
6000HG
Offshore & Shore Game
# 6000 Standard Model
# 5000 size large diameter
spool model. Equipped
with moderate speed
and hoisting power,
it is active in a wide range
of scenes such as
casting games as
well as jigging.
[Reference target fish
/ fishing species]
Shore jigging & plugging,
jigging, offshore casting
(blue fish, dolphin fish,
bonito), etc. |
6000XG
Offshore & Shore Game
# 6000 High Speed Model
# 5000 size large diameter
spool model. Especially
active in casting games
due to the speed
of collection unique
to XG and the elimination
of thread dandruff.
[Reference target fish
/ fishing species]
Shore jigging & plugging,
offshore casting (blue fish,
dolphin fish, bonito),
jigging, etc. |
8000PG
Power-oriented jigging model
By making it low gear,
it is possible to make
the jig act delicately.
If you want to pull out one
more in the threaded area,
this model. Equipped with
Infinity Drive for more
powerful winding.
[Reference target fish
/ fishing species]
Power, winding-oriented
jigging (yellowtail, amberjack),
etc. |
|
|
|
|
 |
 |
|
|
8000HG
Standard model that can
be used for shore, offshore,
jigging, casting
With the powerful hoisting
of the newly installed
Infinity Drive and the
appropriate gear settings,
it is active in a wide range
of scenes.
[Reference target fish
/ fishing species]
PE3-5 class shore,
offshore jigging, plucking
(yellowtail, amberjack),
etc. |
10000HG
# 10000 model that can aim
at big game
A model for big players that
is useful not only for casting
but also for jigging.
Take the initiative with
the powerful hoisting
of Infinity Drive.
[Reference target fish
/ fishing species]
PE4-6 class shore,
offshore jigging, plucking
(yellowtail, amberjack,
yellowfin),
etc. |
|
|
|
|
|
|
 |
|
|
|
|
|
|
| Feature |
 |
 |
 |
 |
HAGANE gear
A metal block is pressed at
a pressure of about 200 tons
and finished with micron
accuracy without cutting.
A unique technology called
precision cold forging creates
hard, tenacious gears that
enable highly durable
and smooth winding comfort. |
HAGANE body
A highly rigid aluminum alloy
is used for the body housing
to firmly suppress bending,
distortion, and twisting
of the reel. Protects delicate
gear engagement and enables
smooth reeling. |
Infinity drive
The conventional X-SHIP
structure realizes light
winding by supporting both
ends of the pinion gear with
bearings. This new model
is equipped with an Infinity
Drive structure that is
a further evolution of that
structure. The main shaft,
which was previously
supported by the pinion gear,
has been made non-contact
and supported by a special
low friction bush, which
greatly reduces the sliding
resistance of the main shaft.
In addition, the main shaft
itself has been given a
special surface treatment,
succeeding in further
reducing friction. The
rotational torque has been
reduced by about 30%
* compared to the
conventional model,
and it has evolved into
a powerful reel that can
be actively wound even
under heavy load.
* According to our
comparison test
* Excluding 4000HG
and 4000XG |
X shield
Water intrusion route is
blocked by applying strong
sealing everywhere,
including the body /
lid mating surface
and spool / drag knob
contact area. Ensures high
reliability and durability
in SW games that are played
under harsh conditions. |
|
|
|
|
 |
 |
|
|
X-Protect for Stopper Bearing
Adopts a contact type triple
lip structure for the stopper
bearing. By filling with special
grease, frictional resistance
is suppressed and high
waterproof performance
is demonstrated without
impairing silky rotation
performance. Due to the
synergistic effect with
the X shield, the waterproof
performance of the body
is equivalent to the
waterproof standard IPX8.
* Excluding 4000HG
and 4000XG |
X-Protect for Line Roller
In addition to the stopper
bearing part, the NEW Stradic
SW is equipped with its
X-protect structure on the
line roller part, further
improving the waterproof
performance. Similar
to the stopper bearing part,
the structure has evolved
to withstand high water
pressure by physically
blocking the intrusion route
of seawater with a seal
member as shown in the
figure. The bearing inside
the line roller is protected
from harsh environments,
and the durability of the
bearing is more than 10 times
* compared to the
conventional product.
* According to our
comparison test |
|
|
|
|
|
|
|
|
| Specification table |
Item
name |
Gear
ratio |
Handle 1
rotation
(cm) |
Weight
(g) |
Max
drag
(kg) |
Line capacity |
Bearing |
Catalog
Price |
Price
[JPY] |
Product
Code |
Parts
Scheme |
| Nylon Line (lb-m) |
| PE Line(PE-m) |
BB |
roller |
| 4000HG |
5.8 |
95 |
300 |
11.0 |
14lb-170m
16lb-150m
20lb-125m |
6/1 |
32,000 |
JPY 27,456 |
04241 |
 |
PE 1-490m
PE 1.5-320m
PE 2-240m |
| 4000PG |
6.2 |
101 |
300 |
11.0 |
14lb-170m
16lb-150m
20lb-125m |
6/1 |
32,000 |
JPY 27,456 |
04242 |
|
PE 1-490m
PE 1.5-320m
PE 2 -240m |
| 5000PG |
4.6 |
78 |
430 |
12.0 |
16lb-200m
20lb-150m
22lb-130m |
6/1 |
32,500 |
|
04243 |
|
PE 2-350m
PE 3-240m
PE 4-170m |
| 5000XG |
6.2 |
105 |
430 |
12.0 |
16lb-200m
20lb-150m
22lb-130m |
6/1 |
32,500 |
|
04244 |
|
PE 2-350m
PE 3-240m
PE 4-170m |
| 6000PG |
4.6 |
83 |
440 |
12.0 |
16lb-240m
20lb-190m
22lb-160m |
6/1 |
32,500 |
|
04245 |
|
PE 2-440m
PE 3-300m
PE 4-210m |
| 6000HG |
5.7 |
103 |
440 |
12.0 |
16lb-240m
20lb-190m
22lb-160m |
6/1 |
32,500 |
|
04246 |
|
PE 2-440m
PE 3-300m
PE 4-210m |
| 6000XG |
6.2 |
112 |
440 |
12.0 |
16lb-240m
20lb-190m
22lb-160m |
6/1 |
32,500 |
|
04247 |
|
PE 2-440m
PE 3-300m
PE 4-210m |
| 8000PG |
4.9 |
94 |
650 |
13.0 |
|
6/1 |
37,900 |
|
04248 |
|
PE 3-410m
PE 4-300m
PE 5-250m |
| 8000HG |
5.6 |
107 |
645 |
13.0 |
|
6/1 |
37,900 |
|
04249 |
|
PE 3-410m
PE 4-300m
PE 5-250m |
| 10000HG |
5.6 |
116 |
660 |
13.0 |
22lb-300m
30lb-210m
35lb-160m |
6/1 |
37,900 |
|
04250 |
|
PE 4-400m
PE 5-300m
PE 6-250m |
* XG = extra high gear specification, HG = high gear specification,
PG = power gear specification. * There is no stopper switching mechanism.
* 8000PG and 8000HG are exclusively for PE line.
|
|
|
